Overview

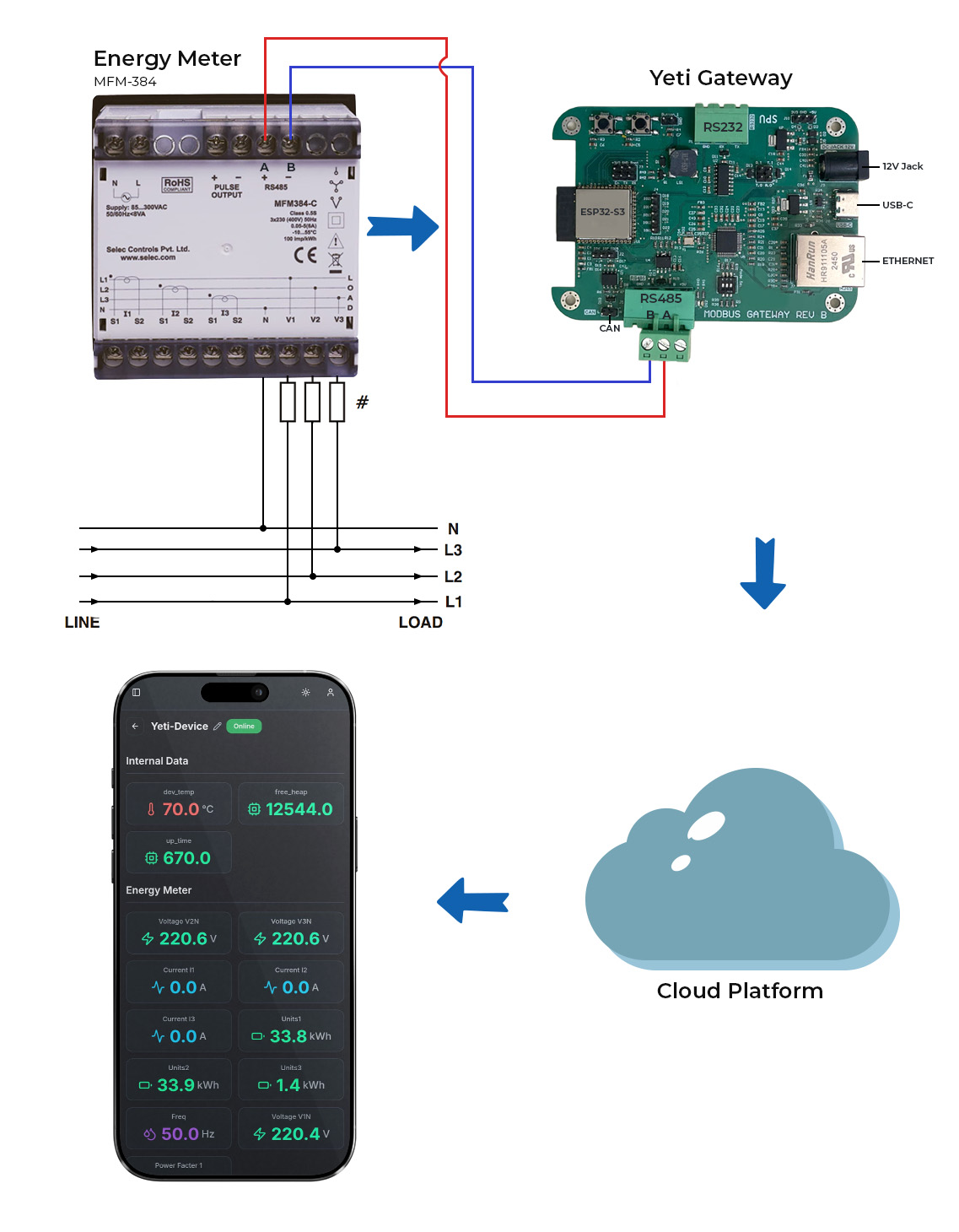

The Yeti Industrial IoT Gateway is a robust, enterprise-ready device that bridges the gap between industrial equipment and modern cloud-based IoT platforms. Built for industrial environments, it provides secure, reliable connectivity with comprehensive monitoring and configuration capabilities.

Key Features

• Multi-Protocol Support:
  Works with multiple industrial communication standards (RS-485, RS-232, CAN)
• Flexible Connectivity:
  Supports Wi-Fi, Ethernet, and BLE for configuration and data visualization.
• Robust Modbus Communication:
  Handles both Modbus RTU and TCP simultaneously with up to 16 devices.
• Over-the-Air (OTA) Updates:
  Manage and update gateway firmware remotely via the cloud.
• Remote Monitoring:
  Real-time data visualization from anywhere using a dedicated Application Server.

For more detail go to Feature

Quick Start Guide

Get your Yeti gateway up and running in minutes:

1. Power On - Connect 12V DC jack power supply
2. Connect - Connect to device WiFi access point or connect the device to Ethernet
3. Web-portal - Go to device's Web-Portal 192.168.192.168
4. Login - Use credentials through captive portal interface
5. Configure Network - Set up WiFi/Ethernet connectivity
6. Add Devices - Configure your Modbus devices and register mappings
7. Setup Modbus - Configure connection parameters (RTU/TCP)
8. Cloud Integration - Set up ThingsBoard MQTT connection
9. Apply & Reboot - Save settings and restart to activate configuration

For more detail go to Device Setup
